Description

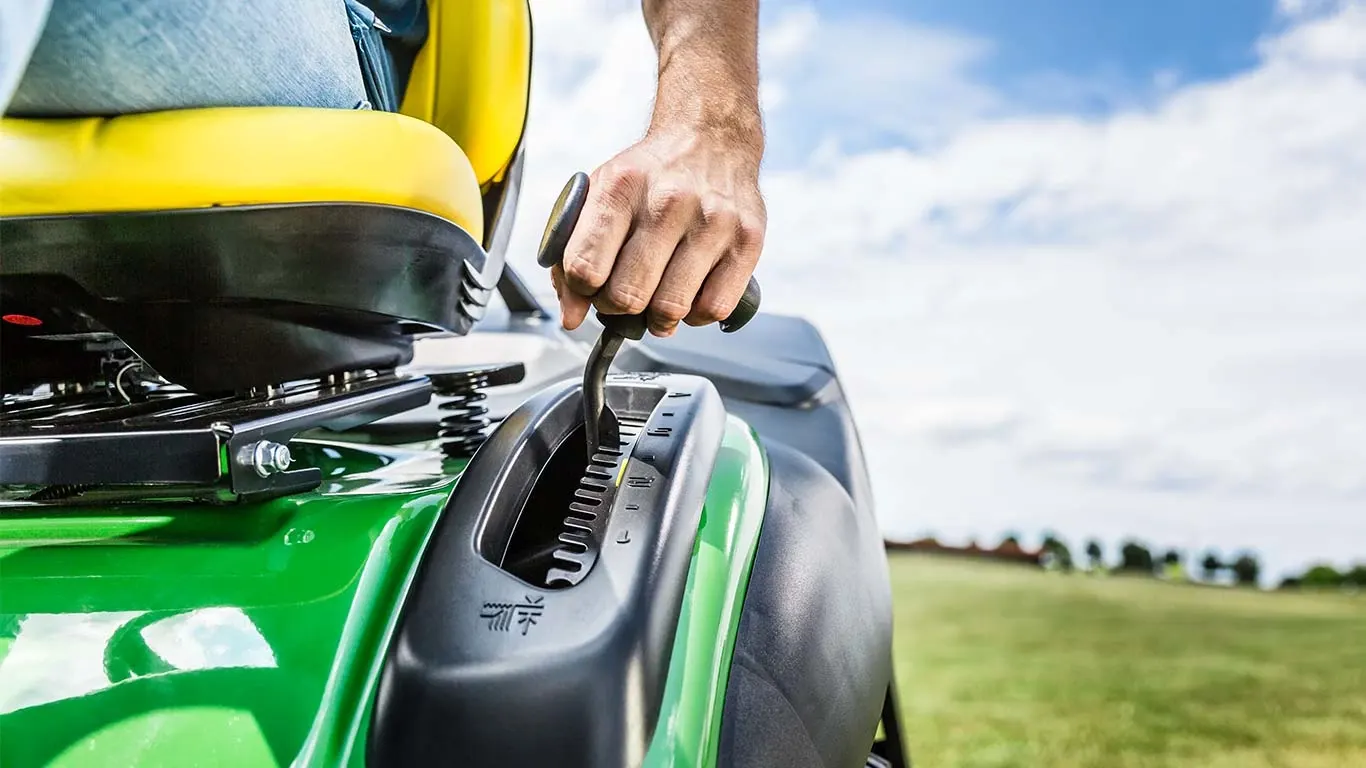

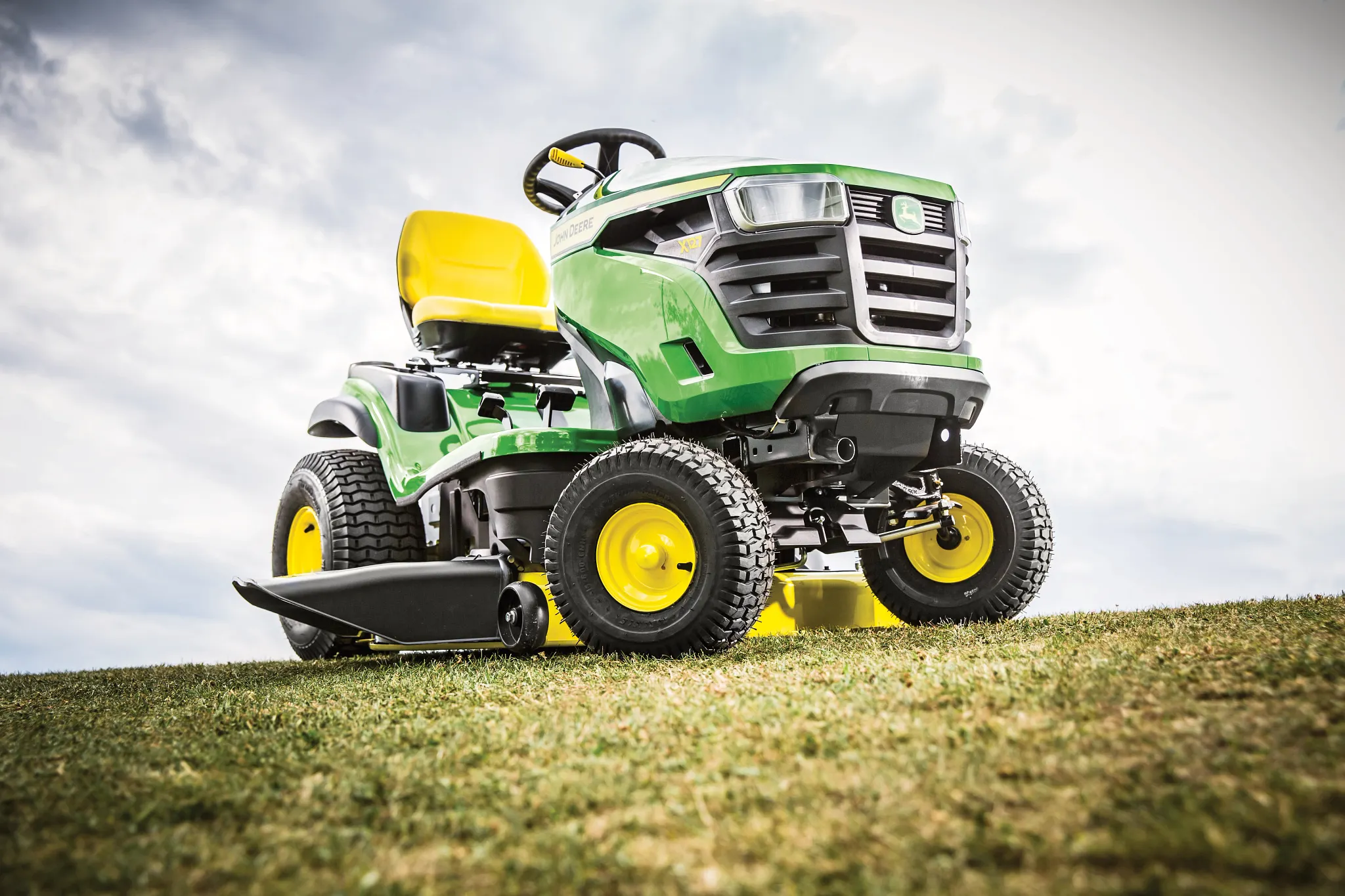

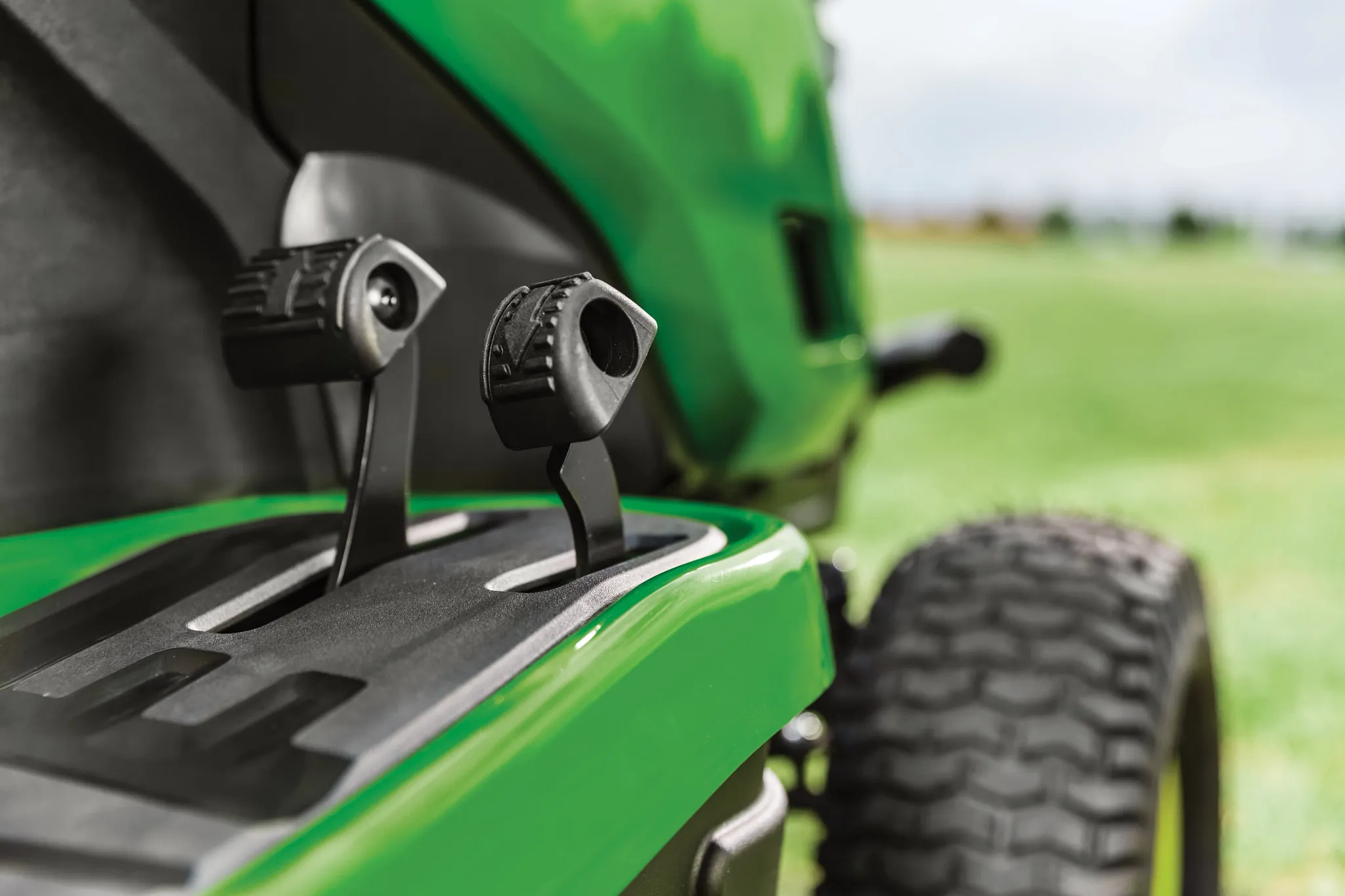

Our X100 Series lawn tractors are the cool solution for people who enjoy mowing and want a hassle-free machine that makes life easy. The ergonomic operator station has colour-coded controls for easy operation, plus an adjustable seat for a smoother ride. Control your speed and direction effortlessly with the Side-by-Side pedals – no need to lift a foot. You can even adjust cutting height on the fly just by sliding a lever!

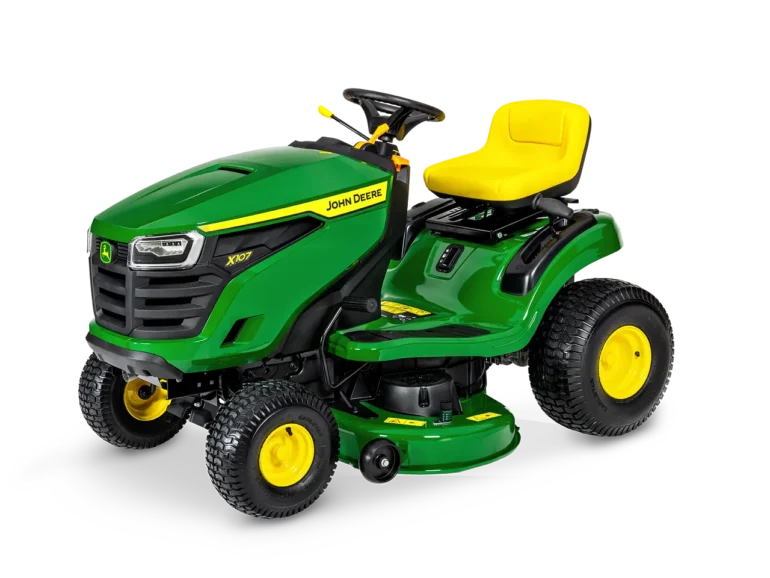

Not only does the X107 feature a powerfully overhead-valve engine and hydrostatic transmission, but it also provides you with the possibility to equip it with a big variety of attachments.

Delivery Nationwide available please call to discuss

Key Specs
Engine power CE-Nominal power (tested in accordance to SAE J1349), at 3200 rpm (±100): 11.11 kW
Oil change No-tools oil drain with replaceable filter
Engine manufacturer/model 31R977 (M31)
Transaxle type Hydrostatic, two-wheel drive
Transaxle control Two side-by-side pedals
Rear tires 20×8-8
Lift system type Spring-assisted hand-grip lever
Cutting width 107 cm   42 in.
Engine
Power CE-Nominal power (tested in accordance to SAE J1349), at 3200 rpm (±100): 11.11 kW
Displacement 500 cc   30.5 cu in.
Manufacturer/model 31R977 (M31)
Type Overhead valve (OHV), full-pressure lube, oil filter
Cylinders One
Governor Mechanical
Choke/speed control Single lever with spring return on choke
Cooling method Air
Air cleaner Cartridge
Oil change No-tools oil drain with replaceable filter
Fuel system
Type Gasoline
Fuel delivery Pulse pump, carburetor
Fuel gauge Mechanical, viewable from seat
Fuel tank location Rear
Fuel fill opening Center, 4.45 cm   1.75 in.
Fuel tank capacity 9 L   2.4 U.S. gal.
Electrical system
Battery 12 V   300 CCA
Charging system Regulated, 8 amp
Engine starter Bendix type
Hourmeter Yes
Headlights Two standard, incandescent
Taillights or reflector No
Backup lights No
Rear work lights No
12-V outlet No
Transaxle
Type Hydrostatic, two-wheel drive
Control Two side-by-side pedals
Cruise control No
Oil cooler Fins and fan on transaxle
Oil filter Yes, not serviceable
Differential lock No
Forward speed 0-8.9 km/h   0-5.5 mph
Reverse speed 0-5.2 km/h   0-3.2 mph
Brakes Internal wet disk
Chassis
Frame Full-length welded steel
Primer/paint E-coat/powder
Weight bracket No
Receiver hitch No
Front axle Cast iron
Spindle bushings No
Front tyres 15×6-6
Rear tyres 20×8-8
Hood material Molded-in colour material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Yes, with debris removing channels
Storage Storage compartment (optional cover available)
Service interval decal No
Fender handles/grips No
Cup holder Yes
Equipment mounting CargO Mountâ„¢ system
Steering
Type Manual, two-wheel steer
Four-wheel steer Not available on this model
Steering wheel Standard design, diamete: 30.5 cm   12 in.
Tilt steering wheel No
Turning radius 45.7 cm   18 in.
Uncut circle radius 63.5 cm   25 in.
Seat
Type One piece
Seat back height 28 cm   11 in.
Armrests No
Fore-aft adjustment While seated, 14 cm   5.5 in.
Seat suspension Tilt, two coil springs
Lift system
Type Spring-assisted hand-grip lever
Hydraulic outlets No
Mower cut height 13 positions, 2.5-10.2 cm   1-4 in.
Cut height increments 0.64 cm   0.25 in.
Preset cut height No
Mower deck
Type Side discharge
Cutting width 107 cm   42 in.
Construction Stamped steel deck shell
Mower deck material Steel, 13 gauge   2.3 mm   0.090 in.
Mower wash port Yes
Mower drive system Manual PTO
Mower wheels Two
Mower wheel adjustment One bolt
Mower level adjustment Easy-level deck
Mower attachability
Type Slide under tractor
Front draft arms Spring pin
Rear draft arms Two spring clips
Mower wheels rotate No
Drive system Single belt
Safety
Backup protection Reverse Implement Option (RIO)
Safety video No
Buyer’s notes
Notes Molded-in colour material reduces sound, will not rust or dent    Durable primer and powder paint finish    Full-length welded steel frame
Optional equipment
Rear bagger Two-bag, 230 L   6.5 bu
Mulching system Mulch cover or high-performance plug
Front blade 125 cm   49 in.
Rotary broom 120 cm   47 in.
Spreader Tow-behind only, 80 kg   175 lb
Front bumper Styled front bumper
Other equipment Rear weight bracket
Dimensions
Height 102 cm   40.2 in.
Overall length 177 cm   69.7 in.
Wheelbase 124.2 cm   48.9 in.
Width with mower 132 cm   52 in.
Width with mower (deflector raised for storage) 118.1 cm   46.5 in.
Weight With mower deck, no fuel: 193 kg   425 lb
