Description

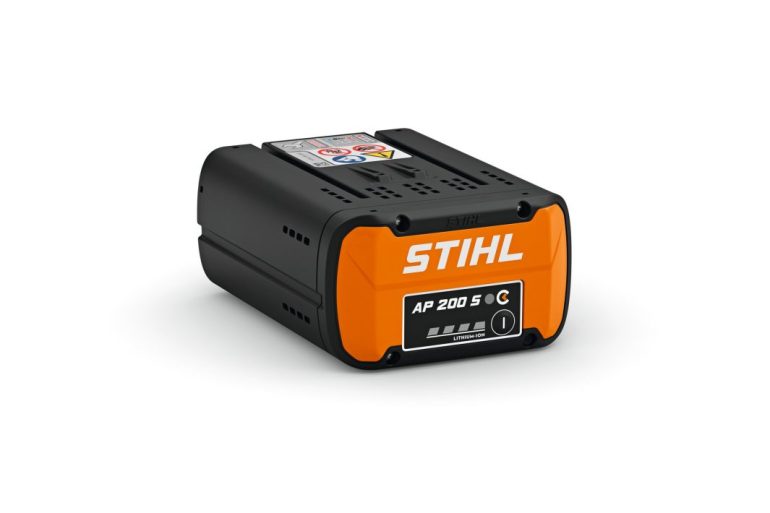

AP 200 S Battery: Lithium-Ion 187 Wh battery with STIHL connected

36 V, 4.8 Ah Lithium-Ion battery. The AP 200 S is a high capacity battery that powers tools within the STIHL AP System.

With an energy capacity of 187 Wh, the battery has an integrated LED charge indicator, clearly displaying as and when the battery needs charging.

The AP 200 S has an improved cold start feature, meaning it calculates the voltage drop caused by cold temperatures and adjusts the battery current accordingly – meaning your tool receives maximum power from the battery and the battery is able to warm up efficiently.

The AP 200 S battery comes equipped with the latest version of STIHL connected, allowing users to keep track of data such as total discharge time and the total number of charge cycles. This data is then made available in the STIHL Connected App, a fleet management tool capable of giving an insightful overview of all tools in your fleet. Durable and suitable for all weather conditions, the AP 200 S delivers the same long working times as the previous version and is the powerhouse behind the vast majority of AP System tools.

This battery has a cold start feature, which protects the cells by warming them up in a controlled way before delivering full power and allows them to work down to -20° Celsius – delivering full power within as little as 2 minutes!

AP System batteries feature intelligent battery management system – this clever technology gives a constant level of power whether the battery is 100% charged or 1% charged.

The AP 200 S will give you full power / reduced power when used with the following tools:



FULL POWER
BGA blower 86
FSA grass trimmer / brushcutter 86, 90, 110, 120, 130, 135
HLA long-reach hedge trimmer 66, 86, 135
HSA hedge trimmer 66, 86, 100, 140, 150
HTA pole pruner 66, 86
KGA sweeper 770
MSA chainsaw 161 T, 190 T
RGA edger 140
RMA lawn mower 2 RV, 448
SEA vacuum cleaner 100
SGA sprayer 85
SHA vacuum shredder 140
REDUCED POWER
BGA blower 100, 160, 200, 250, 300
BRA backpack blower 500, 600
HTA pole pruner 135, 150, 160
KMA KombiMotor 120, 135, 200
MSA chainsaw 160, 200, 220 T, 300
REA pressure washer 100
RMA lawn mower 443, 448, 453 PV, 750 V, 756 V, 7 RV
CANNOT BE USED WITH
MSA chainsaw 300
FSA brushcutter / clearing saw 250, 400
RMA lawn mower 765 V
Rated voltage 36 V
Max. voltage 40 V
Battery system ALLPRO/AP
Battery weight 1.3 kg
Energy content 187 Wh
Rated capacity as per IEC 61960 4.80 A·h
Rated cell capacity (as per manufacturer data) 2.60 A·h
Number of LEDs 4 pcs
Width 116 mm
Length 70 mm
