Description

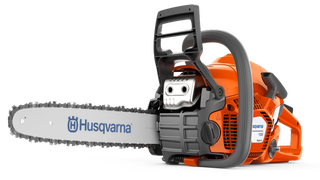

Lightweight and easy to use – Husqvarna 135 Mark II is a chainsaw ideal for cutting tasks around the garden, such as cutting firewood and felling small trees. It has an X-Torq® engine that provides great power and torque thanks to highly efficient combustion. Easy to start and equipped with anti-vibration dampeners for sparing the user’s arms and hands. Inertia chain brake for extra safety and the chain is easily adjusted using the side-mounted chain tensioner.

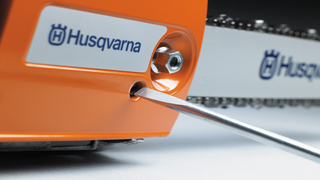

Chain tensioning from the side
Allows quick and convenient chain tensioning.

Air Injection™
Centrifugal air cleaning system for reduced wear and longer operating time between filter cleanings.

Powerful and Efficient X-TORQ® Engine
Our X-TORQ® engines deliver great power and torque thanks to highly efficient combustion.

Inertia chain brake
Effective inertia-activated chain brake.

Combined choke/stop control
Combined choke/stop control allow for easier starting and reduce the risk of engine flooding.

Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting

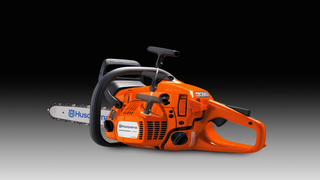

Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort. Resistance in the starter cord is reduced by up to 40%.

LowVib®
Effective anti-vibration dampeners absorb vibration, sparing the user’s arms and hands.

Capacity

Chain speed at 133% of maximum engine power speed
22.3 m/s
Chain speed at max power (m/s)
16.8 m/s
Clutch engagement speed (±120)
4000 rpm
Clutch engagement upper limit
4500 rpm
Idling speed
3000 rpm
Idling upper limit
3200 rpm
Ignition module air gap
0.3 mm
Maximum power speed
9000 rpm
Output shaft power
1.6 kW
Racing speed lower limit
11200 rpm
Torque, max.
1.84 Nm
Torque, max. at rpm
8000 rpm

Certifications

Cert machine dir. 2006/42/EC Decl. No.
Yes

Dimensions

Article gross weight
7300 g
Article net weight
6000 g
Bar length (inch)
14 in
Bar length
35 cm
Recommended bar length, min-max
14-16 in
Product Size, LxWxH
41.7x23x29 cm
Weight (excl. cutting equipment)
4.7 kg

Engine

Cylinder bore
39 mm
Cylinder displacement
38 cm³
Cylinder stroke
32 mm
Electrode gap
0.55 mm
Engine Family CARB
*PWES.0384CX
Engine Family EPA
-PWES.0384CX
Ignition module air gap
0.3 mm
Spark Plug
NGK BPMR7A

Equipment

Bar mount type
HSM
Chain type
S93G
Chainsaw sub-group
Occasional use chainsaws
Handle type
Standard
Chain pitch
3/8″ mini
Sprocket type
Spur 6

Lubricant

Fuel consumption
725 g/kWh
Fuel consumption
0.725 kg/h
Fuel tank volume
0.37 l
Lubricant type (Engine)
Husqvarna 2 stroke or equiv. at 50:1
Oil pump type
Automatic
Oil tank volume
0.26 l
Power/fuel type
Gasoline



Delivery

Most products are kept in stock, and we aim to deliver your order within 1- 2 working days. If the item is out of stock, we will keep you informed of any major delays.
MowShop shall not be held liable for any delays in delivering goods, nor shall they be held liable for delays caused to customers work commitments due to your order not arriving on time.
MowShop shall not be liable to customers for charges for hire of alternate machinery or labour. MowShop will not be liable for compensation of any kind due to late delivery of machinery or failure of machinery or damage to property from delivery.
Delivery of products is usually 1-2 days from receipt of order and clearance of payment. Delivery of tractors is usually 3 – 7 working days after receipt of order.
Products will be despatched to your preferred address directly from our distributors. A detailed receipt, together with a copy of the credit card payment receipt, will be posted separately to you.

Cancellation Rights: Returns & Refunds after delivery

In accordance with existing UK Distance Selling Regulations and the SafeBuy Web Trader Code you have the right to cancel your order within 14 days of receiving your goods if you wish to return the items.
To be eligible for a return, ensure that the goods remain unused and are retained in their original packaging and are in the same condition that you received it. It must also be in the original packaging.
You must contact us before returning an item on 0345 222 1538, failure to do so may result in us being unable to action the refund process. We take no responsibility for items that are returned without prior contact or without authorisation from ourselves.
You must return your products within 30 days of delivery at your own cost and risk. Returns should be sent to MOWSHOP, Allscott, Telford, Shropshire, TF6 5ED We will refund the price you paid for such goods within 30 days of the date of receiving the returned items, provided that the goods are returned by you and received by us in the condition they were in when delivered to you.
Items returned without prior agreement will be refused and returned to sender resulting in you being liable for an extra charge from the couriers. If MowShop arranges to collect your items the cost to the buyer would be £36. This amount will be deducted from any refundable amount.
If the returned item has been USED or isn’t in its ORIGINAL PACKAGING devaluing the goods resulting in handling them beyond what is necessary to establish the nature, characteristics or functioning of the goods we will deduct a reasonable amount from the refund, up to the contract price to cover us being unable to resell the item for its full value.
We advise you take photos of the item and packaging before returning as a record of its condition, in the event of any damage acquired by the couriers when in transit. Please ensure there is no petrol or oil in the products and any batteries are disconnected before returning the items. Do not send your purchase back to the manufacturer. We will require a receipt or proof of purchase. The item must be boxed and package correctly as advised by the courier, a courier will refuse to collect the item if it is not properly boxed and we will charge for failed collections.
The product remains yours until successfully received and signed for by a member of Mowshop.

About Husqvarna

With over 330 years of innovation and passion, Husqvarna provides professionals with forest, park and garden products. Husqvarna lets high performance meet usability and safety, making you ready to get the job done efficiently. Husqvarna offers a wide and growing range of products and accessories, including everything from chainsaws and power cutters to robotic lawnmowers.

Warranty

Husqvarna UK Ltd warrants Husqvarna produced products (of various brands) to the original purchaser to be free from defective material and workmanship from the date of purchase for the  “Warranty Period” here stated, dependent upon the type of product use. The Warranty Period is as follows for the products listed and is dependent on the manufacturer’s service schedules being
adhered to:

Limited Warranty Period
The limited warranty period commences on the date of original purchase or delivery of the Husqvarna product, whichever comes first, and is valid for the following term:

Products and accessories – 24 months for consumers provided that the following conditions are met:
• Sale of Husqvarna products must be registered through intended applications in the Husqvarna Reseller Portal, or to its connected services
• The Husqvarna Product must have a proven service history in accordance with the product operator handbook/manual (where service instructions are provided).
• The Husqvarna Product must have been operated in accordance with the manufacturer’s recommendation for use.
• “consumer” means any natural person who purchased a product for private use and ownership.
Note: Battery warranty is handled separately, see “Batteries”.

Products and accessories – 12 months for professionals provided that the following conditions are met:
• Sale of Husqvarna products must be registered through intended applications in the Husqvarna Reseller Portal, or to its connected services
• The Husqvarna Product must have a proven service history in accordance with the product operator handbook/manual (where service instructions are provided).
• The Husqvarna Product must have been operated in accordance with the manufacturer’s recommendation for use.
• “professionals” means non-consumers, including for avoidance of doubt, any form of legal entity, municipalities and other governmental or state owned companies and organisations, and natural persons who purchase for the product for professional use and ownership.
Note: Battery warranty is handled separately, see “Batteries”.

Batteries
• Starter batteries – 12 months; or other batteries follow the same rule as products & accessories above, when the relevant conditions are met:
• Robotic mower batteries – 24 months for consumers / 12 months for professionals or the remainder of the original product warranty if fitted free of charge to a product under the terms of this Limited Warranty; or
• Backpack batteries – 24 months for consumers / 12 months for professionals or the remainder of the original product warranty if fitted free of charge to a product under the terms of this Limited Warranty; or
• Other battery series (for battery driven products) – 24 months for consumers / 12 months for professionals, when purchased separately from the product, or, for the remainder of the original product warranty if fitted free of charge to a product under the terms of this Limited Warranty.

Spare parts – 6 months when purchased separately from the product, or for the remainder of the original warranty if fitted free of charge to a product under the terms of this Limited Warranty.

Husqvarna Care covers various paid for extended warranties, please contact your Husqvarna dealer for details.
